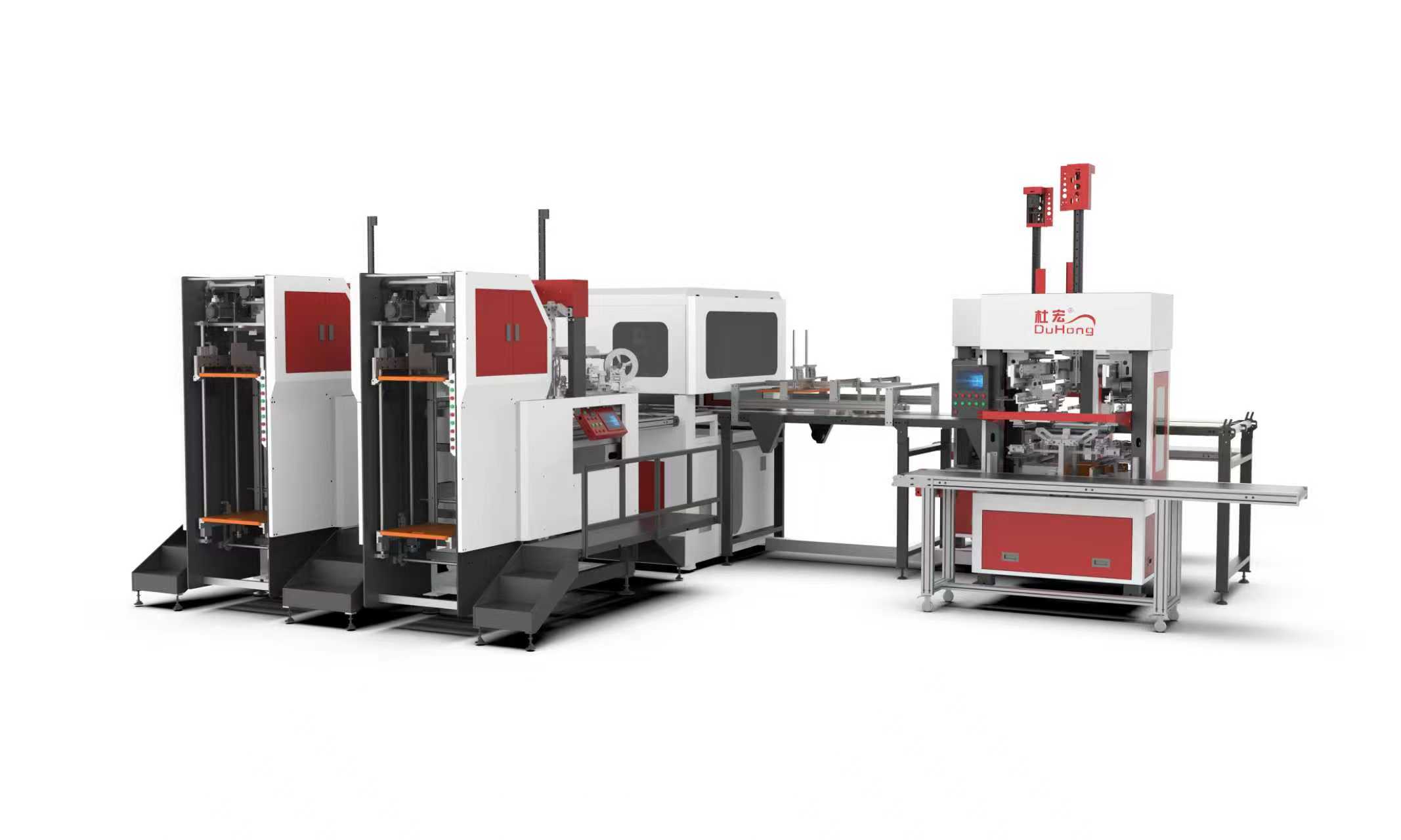

DH-1050-A Fully Automated Dual-station Intelligent Box Making Machine

This innovative machine integrates a dual-input feeding system, synchronized parallel forming stations, intelligent servo motion control, and high-precision visual alignment. It features an intuitive digital interface for easy operation and full parameter customization, plus a dual-line architecture enabling independent yet synchronized production. Designed for exceptional accuracy, it offers ultra-precise positioning and quick product specification switching. Its fully automated workflow completes the entire box manufacturing process continuously to achieve optimal throughput.

    Contact us
    product details

    DH-1050-A specification

    Type DH-1050-A
    Paper size(max) 480*700 mm
    Paper size(min) 105*70 mm
    Paper Thickness 100-400 g/m²
    Cardboard Thickness 0.8~3 mm
    Finished Product(Carton)Size(max)(W*L*H) 300*350*120 mm
    Finished Product(Carton)Size(min)(W*L*H) 35*50*10 mm
    Fold-in edge size(Rmax) 120 mm
    Fold-in edge size(Rmin) 10 mm
    Positioning Accuracy ±0.10 mm
    Production Speed 20-70 sheets/min
    Total Power 69.7 kw/380v 3phase
    Equipment Operating Power 12.8 kw/380v 3phase
    Auxiliary Power 15.4kw
    Electric Power 5.1kw
    Weight 6505kg
    Machine size(L*W*H) L9200*W5890*H3150mm
    This data is intended as arough reference; actual results may vary based on individual cases.
