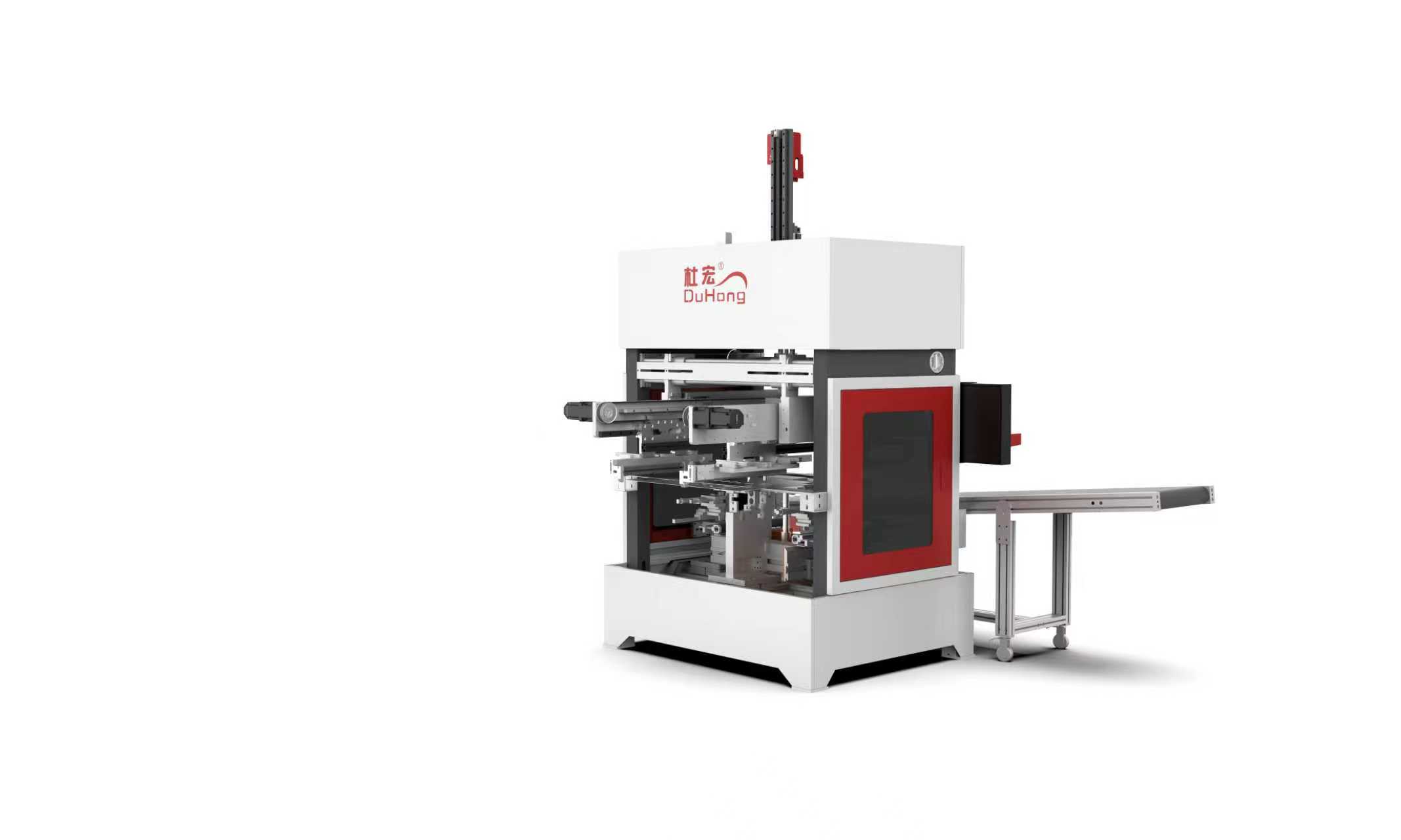

DH-600C-D Semi-automatic Box Making Machine

Semi-Automatic Servo Intelligent Box Making Machine DH-600C features an innovative structure: no need to change upper/lower cutting blades, and auto-adjustable bubble-pressing plate eliminates manual replacement. Its four-side simultaneous bubble-pressing ensures deformation-free boxes with excellent quality. Equipped with high-precision linear guides, ball screws, a four-pillar structure, and full servo drive, it guarantees stability, rigidity, and precise execution of specifications. For safety, it has a dual-layer system: infrared safety gratings on both pillars and a pressure plate safety design.

    DH-600C specification

    Type DH-600C-D
    Cardboard thickness 0.8~3mm
    Finished product (cardboard) size (max)(W*L*H) 400*600 * 150 mm
    Finished product (cardboard) size (min)(W*L*H) 50*70*12mm
    Fold in edge size (Rmax) 80 mm
    Fold in edge size (Rmin) 10mm
    Positioning accuracy ± 0.10 mm
    Production speed 12-25 sheets/min
    Total power 8kw/220v
    Production and operation power 4kw/220v
    Weight 820kg
    Machine size (L*W*H) L2600*W2000*H2450 mm
    This data is for reference only; The actual results may vary depending on specific circumstances.
