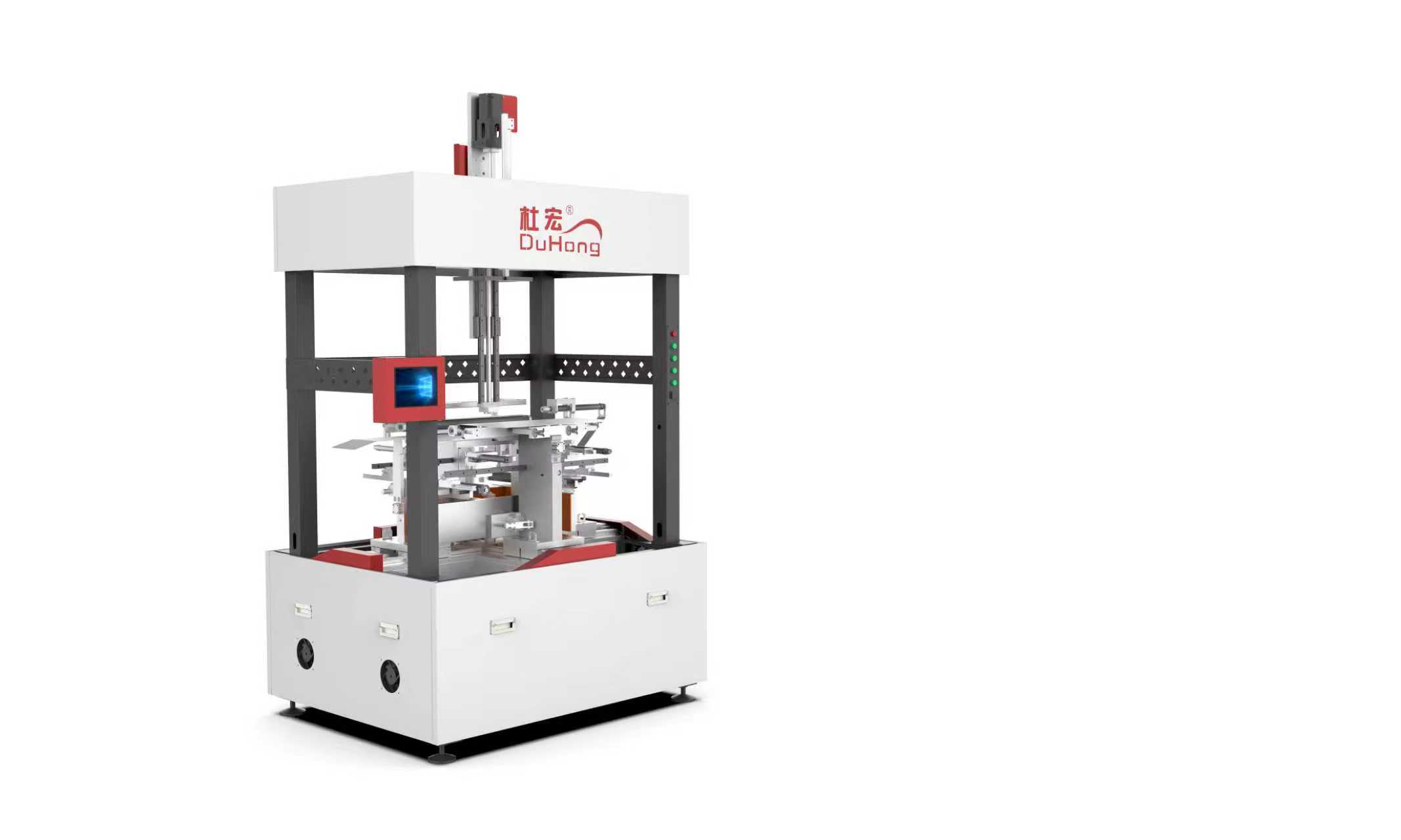

DH-600C Semi-automatic Forming Machine

Semi-Automatic Servo Intelligent Box Making Machine DH-600C features an innovative structure: no need to change upper/lower cutting blades, and auto-adjustable bubble-pressing plate eliminates manual replacement. Its four-side simultaneous bubble-pressing ensures deformation-free boxes with excellent quality. Equipped with high-precision linear guides, ball screws, a four-pillar structure, and full servo drive, it guarantees stability, rigidity, and precise execution of specifications. For safety, it has a dual-layer system: infrared safety gratings on both pillars and a pressure plate safety design.

product details

DH-600C product description

The machine adopts an innovative design that eliminates the need for blade and bubble-pressing plate replacement, streamlining operations with an auto-adjustment system. Equipped with a four-side synchronized bubble-pressing mechanism, it ensures deformation-free box forming.

The entire machine utilizes high-precision linear guides and ball screw drives, with a four-pillar structure ensuring stable operation. Parameter-based input enables user-friendly operation.

A dual-layer safety protection system, including infrared light barriers and pressure-sensitive mechanisms, effectively safeguards operational safety.

DH-600C unparalleled positioning accuracy

The machine features a tool-free mold-changing design (no blade/bubble-pressing plate replacement), four-side synchronized bubble-pressing technology, and a high-precision linear guide & ball screw drive system. Its four-pillar rigid frame ensures structural stability, while the fully servo-powered intelligent adjustment system enables precise parameter control. Additionally, the dual safety protection mechanism (infrared light barrier + pressure-sensitive emergency stop) guarantees operator safety.

DH-600C Designed for excellence

The DH-600C semi-automatic box making machine offers versatile production capabilities, extending far beyond standard packaging applications. This advanced system excels in manufacturing premium-grade boxes for:

High-value product sectors:

Luxury electronics packaging (smartphones, watches, audio equipment)

Precision jewelry cases with velvet/foam inserts

Premium cosmetic boxes with magnetic closures

Specialty consumer goods:

Rigid gift boxes for tea, chocolates and gourmet foods

Designer shoe boxes with reinforced structural integrity

High-end retail packaging for boutique products

DH-600C specification

Type	DH-600C
Paper size (maximum)	length 700 * width 600mm
Paper size (min)	Length 120 * Width 80mm
Paper thickness	100-400 grams per square meter
Cardboard thickness	0.8~3mm
Finished product (cardboard box) size (maximum)	length 500 * width 450 * height 150 millimeters
Finished product (cardboard box) size (small)	length 65 * width 65 * height 12mm
Folding edge size (Rmax)	90 millimeters
Folding edge size (Rmin)	10mm
Positioning accuracy	± 0.10 millimeters
Production speed	18-24 pieces/minute
Total power	3kw/220v
Production and operation power	/
Auxiliary power supply	/
Electricity	/
Weight	860 kilograms
Machine dimensions (length * width * height)	1200 * 1100 * 3400 millimeters
This data is for reference only; The actual results may vary depending on specific circumstances.
