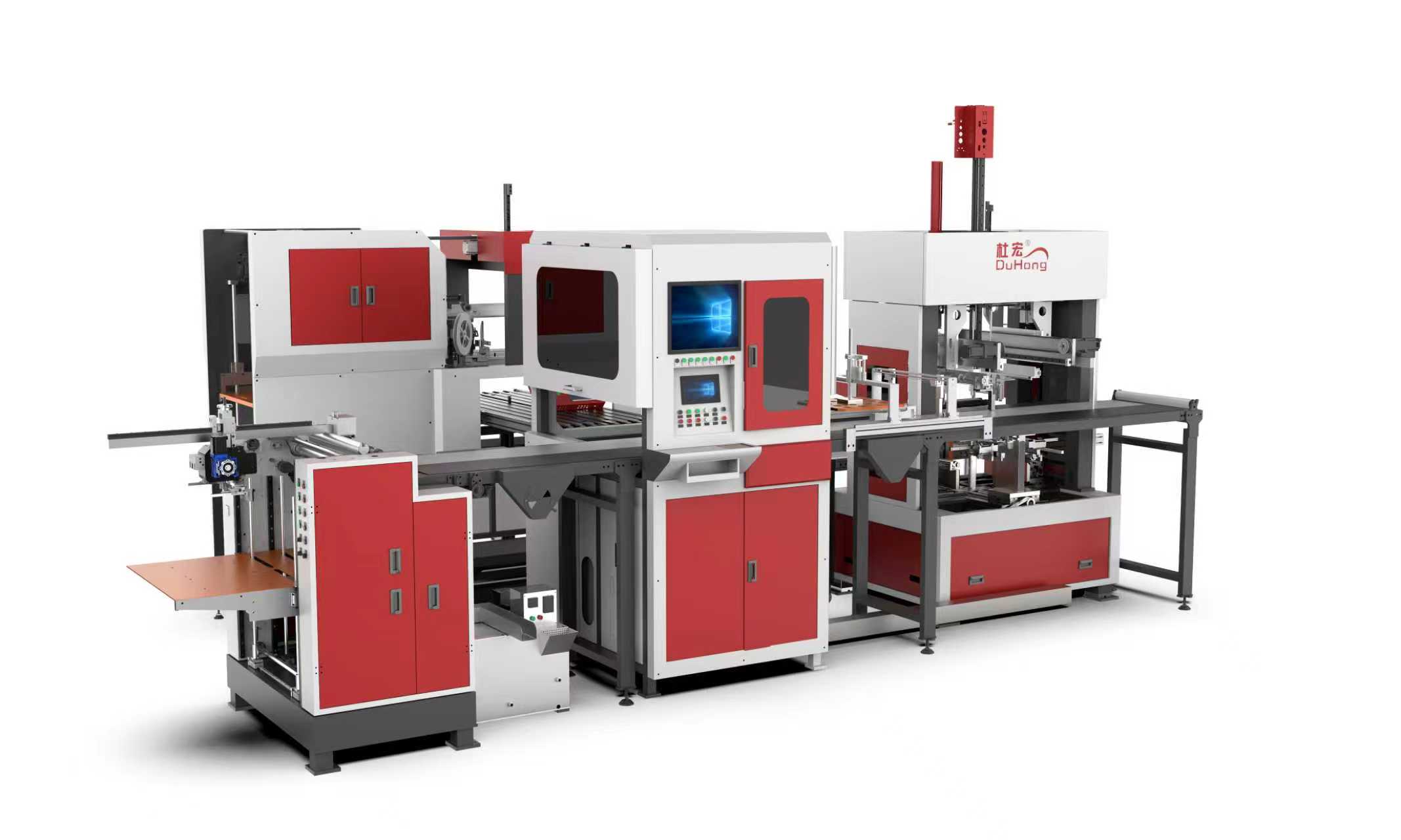

DH-6412-S Full-automatic Intelligent Making Machine-1

This machine adopts a full servo-driven system with advanced motion control and automated positioning for precise, efficient operation. Equipped with an intelligent HMI, it enables digital adjustments, customizable settings, and quick setup. Featuring servo-controlled pressing and precision folding, it eliminates extra finishing while ensuring high accuracy, supports rapid tooling changes, and maintains stable performance. It completes the entire manufacturing process in one cycle for high-speed, reliable production, and its versatility in various box styles meets dynamic market demands.

    DH-6412-S specification

    Type DH-6412-S
    Paper size (max) L600*W700mm
    Paper size (min) L80 * W120mm
    Paper thickness 100-400 g/m²
    Cardboard thickness 0.8~3mm
    Finished product (cardboard box) size (maximum) W400*L600*H120mm
    Finished product (cardboard box) size (small) W55*L65*H12mm
    Folding edge size (Rmax) 120mm
    Folding edge size (Rmin) 10mm
    Positioning accuracy ± 0.10 millimeters
    Production speed 10-30 sheets/min
    Total power 42kw/380v three-phase
    Production and operation power 7.2kw/380v 3phase
    Electricity 5.1kw
    Weight 4025kg
    Machine dimensions (length * width * height) L7200*W3870*H3450mm
    This data is for reference only; The actual results may vary depending on specific circumstances.
