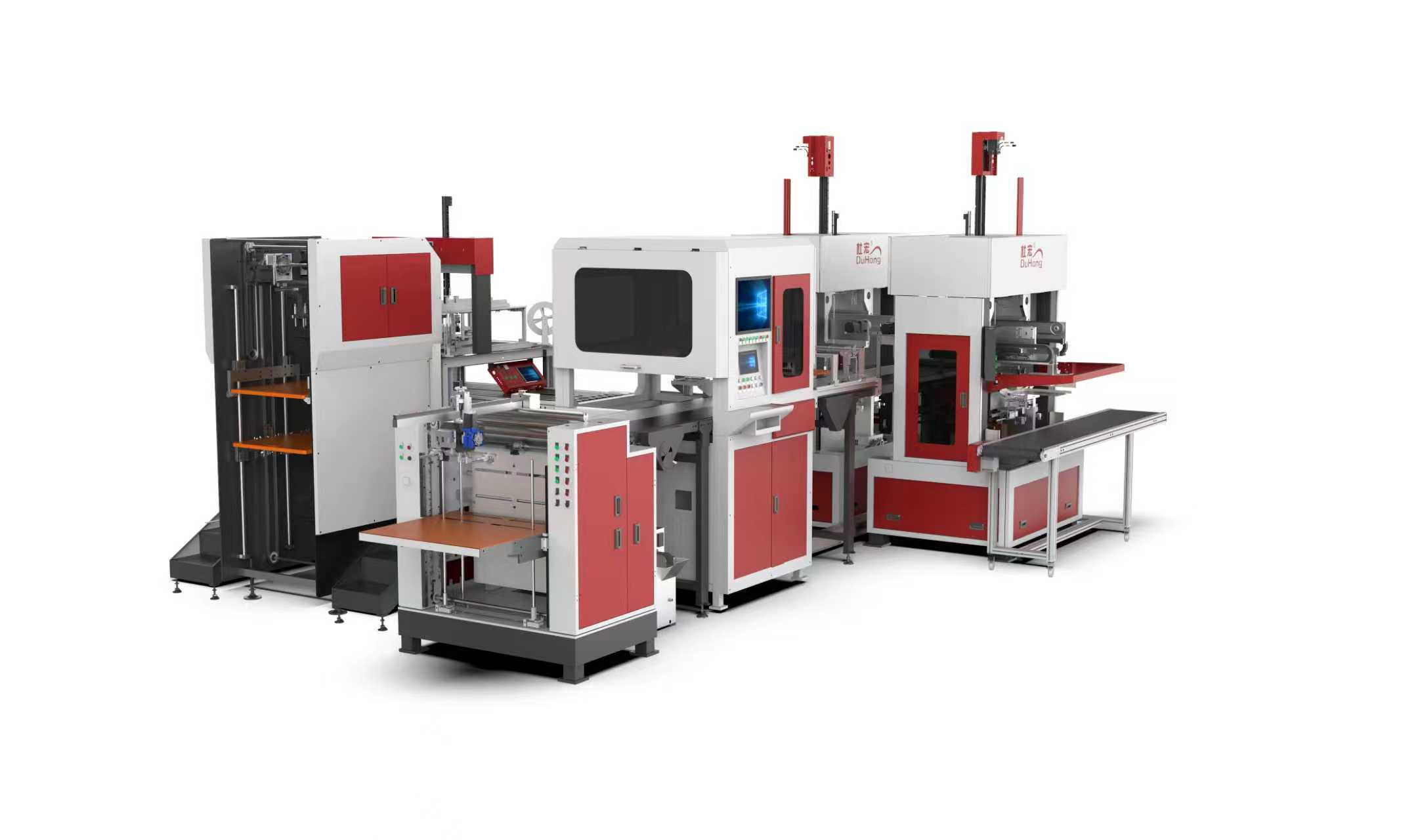

DH-6417-D Full-automatic Intelligent Making Machine-1

This machine adopts a full servo-driven system with advanced motion control and automated positioning for precise, efficient operation. Equipped with an intelligent HMI, it enables digital adjustments, customizable settings, and quick setup. Featuring servo-controlled pressing and precision folding, it eliminates extra finishing while ensuring high accuracy, supports rapid tooling changes, and maintains stable performance. It completes the entire manufacturing process in one cycle for high-speed, reliable production, and its versatility in various box styles meets dynamic market demands.

    Contact us
    product details

    DH-6417-D specification

    Type DH-6417-D
    Paper size (max) L700*W850mm
    Paper size (min) L80 * W120mm
    Paper thickness 100-400 g/m²
    Cardboard thickness 0.8~3mm
    Finished product (cardboard box) size (maximum) W400*L600*H170mm
    Finished product (cardboard box) size (small) W55*L65*H12mm
    Folding edge size (Rmax) 150mm
    Folding edge size (Rmin) 10mm
    Positioning accuracy ± 0.10 millimeters
    Production speed 10-52 sheets/min
    Total power 59.5kw/380v three-phase
    Production and operation power 8.8kw/380v 3phase
    Electricity 5.1kw
    Weight 5045kg
    Machine dimensions (length * width * height) L7200*W4855*H3450mm
    This data is for reference only; The actual results may vary depending on specific circumstances.
