01

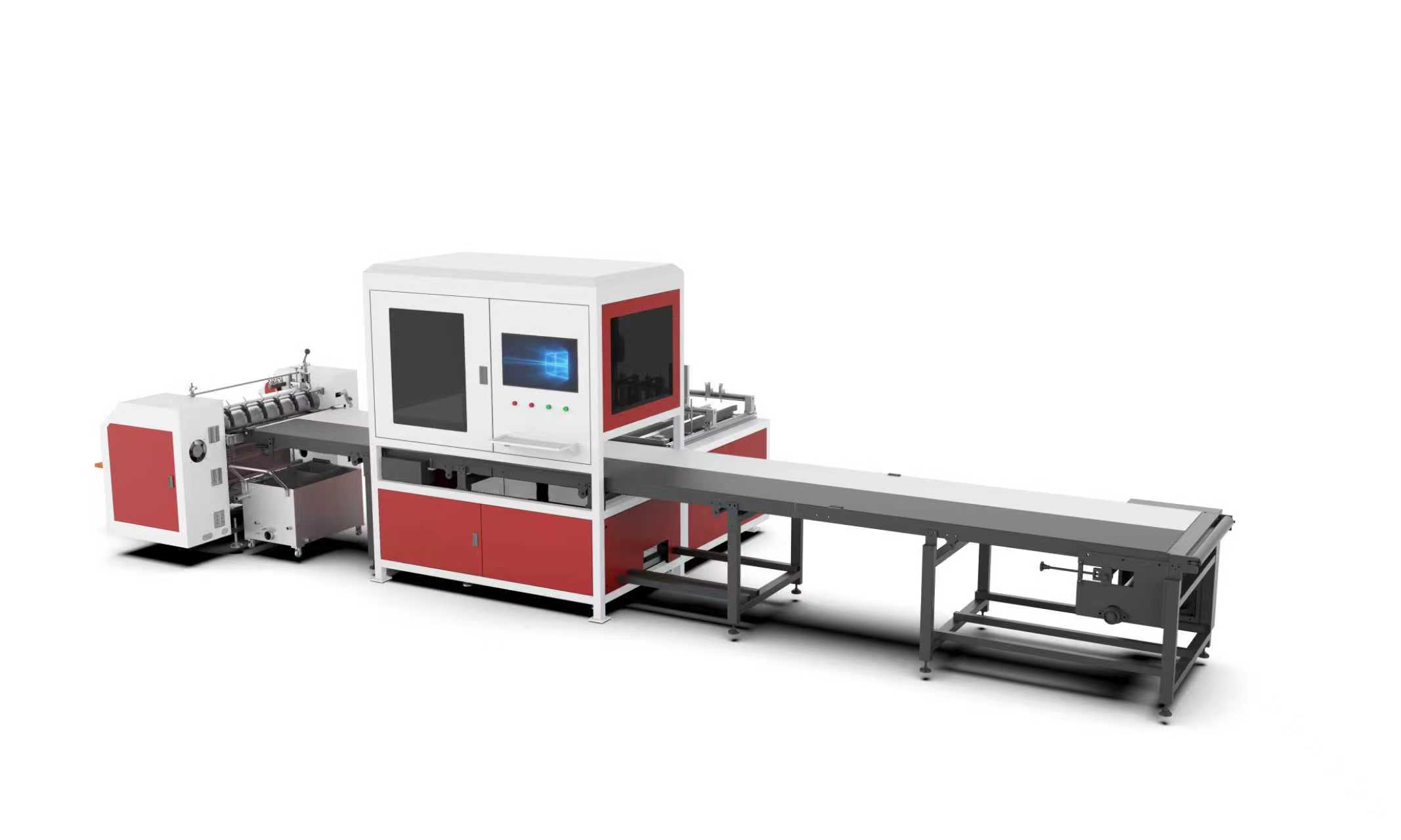

DH-1050F-( )-( ) Vision Positioning Production Line

The Double-Station Visual Positioning Line combines high-speed conveying with advanced vision alignment to deliver ±0.1mm precision and continuous production. Widely used in luxury packaging, electronics, cosmetics, wine, and gift boxes, it ensures efficiency, stability, and premium quality with a durable, user-friendly design.

    Contact us

    DH-1050F-( )-( ) Specification

    Type DH-1050F-( )-( )
    Paper Size (max) 800*950mm
    Paper Size (min) 60*100mm
    Paper Thickness 100-400g/㎡
    Cardboard Thickness 0.8-3mm
    Shell Dimensions (max) 500*1000mm
    Shell Dimensions (min) 40*100mm
    Positioning Accuracy ±0.10mm
    Production Speed 20-44sheets/min
    Total Power 17kw/380v 3phase
    Equipment Operating Power 5.5kw/380v 3phase
    Electric Power 4.5kw
    Weight 1532kg
    Machine size (L*W*H) L7400*W2750*H1920mm
    This data is for reference only; The actual results may vary depending on specific circumstances.
